MTU size issue

The following issue appeared to a customer that manages data at the edge with limited network connectivity, using ZeroTier to generate a static IP address.

Use Case

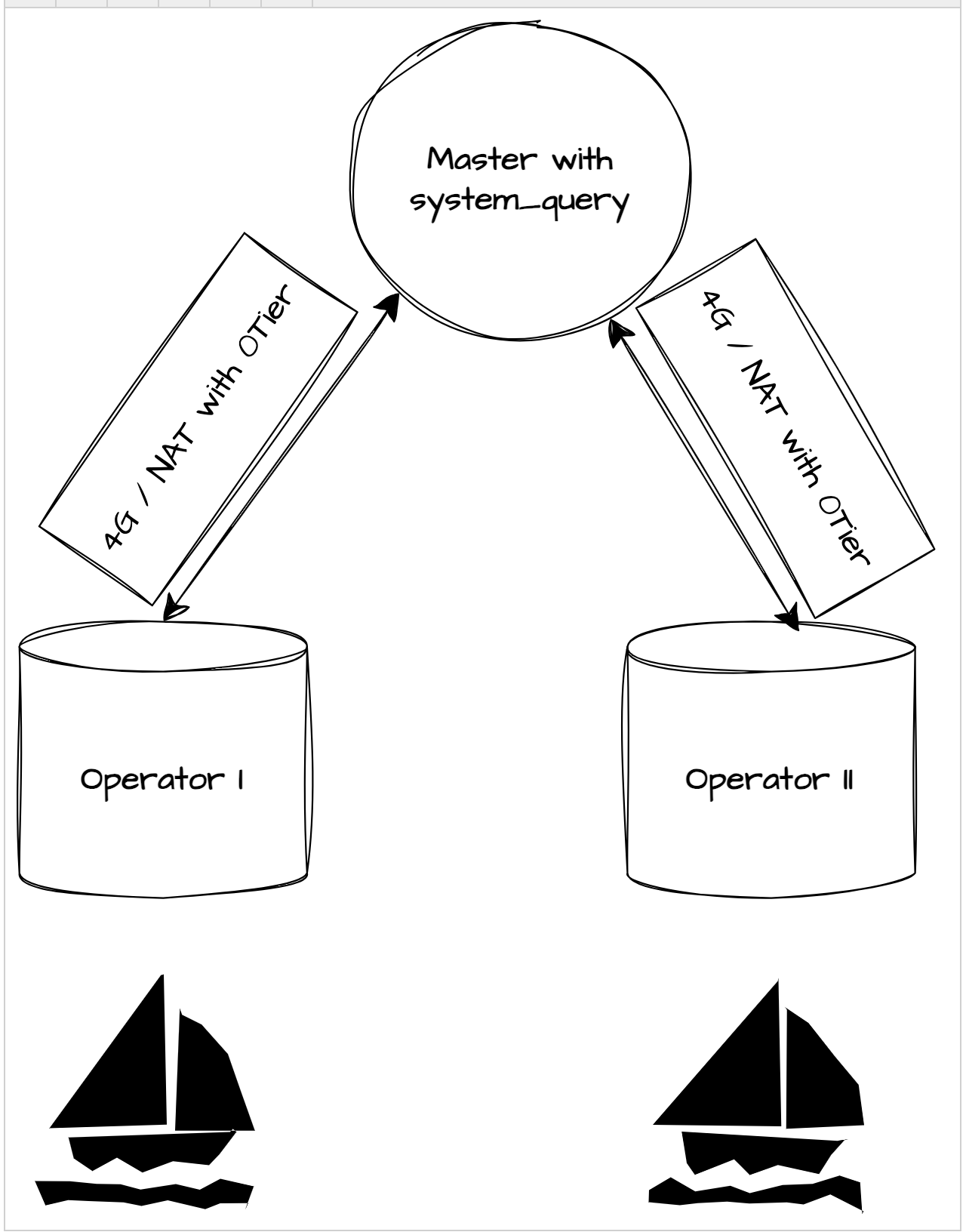

The deployment uses AnyLog to manage data on boats: the ‘floating’ edges run Operators and connect to a central DC (where the Master and Query agents are located). Communication is done through 4G, which may cause network inconsistencies,
and ZeroTier VPN is used to secure communications and have static IP addresses.

Problem Symptoms

When the Operator nodes are started, they are able to communicate with the central Master. This can be seen as the two share the same blockchain content. However, after about 5 minutes, the nodes fail to communicate between one another (the Master sends a frame, get the local ‘transmitted’ info but in fact nothing flows to the Operator) . This caused an inability to execute queries against the network.

Problem Description

It was clear from the start that this is a networking related issue, however, we had thought the issue ws from either the Docker, Firewall or ZeroTier configurations – when running each component separately the issue still persisted.

As it turned out, the root problem was in fact relating to ZeroTier, but instead of the regular configurations we were looking at, the issue was the maximum transmission units.

Maximum Transmission Unit (MTU) are the maximum size of each packet in a given transmission. With ZeroTier the default value was set to 1,320 bytes; however, AnyLog requires an MTU >=2,009 bytes.

Problem Fix

Override MTU Manually

  • Linux
    sudo ip link set dev zt<interfaceID> mtu 2009
  • Mac OS X
    sudo ifconfig zt<interfaceID> mtu 1400
  • Windows
    netsh interface ipv4 set subinterface "ZeroTier One [<interfaceID>]" mtu=1400 store=persistent
