Deployment Integration

The process by which events occur and decisions are made at deployment in order to provide the initiation scripts.

The following document describes the relationship between the compiled source code (ie AnyLog agent) and deployment-scripts which defines which services to run on a given AnyLog agent.

As such the document covers a few things:

The break between AnyLog and deployment-scripts
How to deploy AnyLog (simple)
The connection between AnyLog & deployment-scripts
Overriding the Entry Point
Patches & Version Updates

The document discusses AnyLog, but the same logic also works when deploying EdgeLake.

The break between AnyLog and deployment-scripts

A running node is really two independent pieces:

┌─────────────────────────────────┐
│  AnyLog / EdgeLake binary       │  ← the engine — compiled, never edited
├─────────────────────────────────┤
│  deployment-scripts (git repo)  │  ← the configuration — yours to read, fork, or customize
└─────────────────────────────────┘

The binary is the compiled AnyLog/EdgeLake runtime. It knows how to execute commands and .al script files, but it doesn’t know anything about what to run on its own.
deployment-scripts is what tells the binary what to actually do — which services to start, which database to connect, which policies to publish. It’s plain text, not compiled, and it’s designed to be read, forked, or edited.

This split is why you never need to rebuild the AnyLog image just to change how a node behaves — you only need to change the scripts it’s pointed at.

Initial Deployment

User clones a repo called docker-compose (or K8s-compose) containing a set of configuration files.
User updates the configuration files as needed. Key configs:
1. LICENSE_KEY
2. LEDGER_CONN
3. NODE_TYPE
A user can skip the full config file (i.e. skip make) and just run docker run with the 3 environment variables directly.
Deploy AnyLog / EdgeLake using make or docker run.

What Happens in the Docker Container

AnyLog is the actual source code. To configure its services, AnyLog agents use configuration policies driven by a set of scripts called deployment-scripts. For the internals of how those policies and scripts actually communicate (and the process vs. thread execution model behind them), see Deployment Scripts — Integration Reference.

By default, the docker image ships with the main deployment-scripts already baked in. Using the environment params DEPLOYMENTS_REPO and DEPLOYMENTS_BRANCH, a user can point at a different set of deployment-scripts instead.

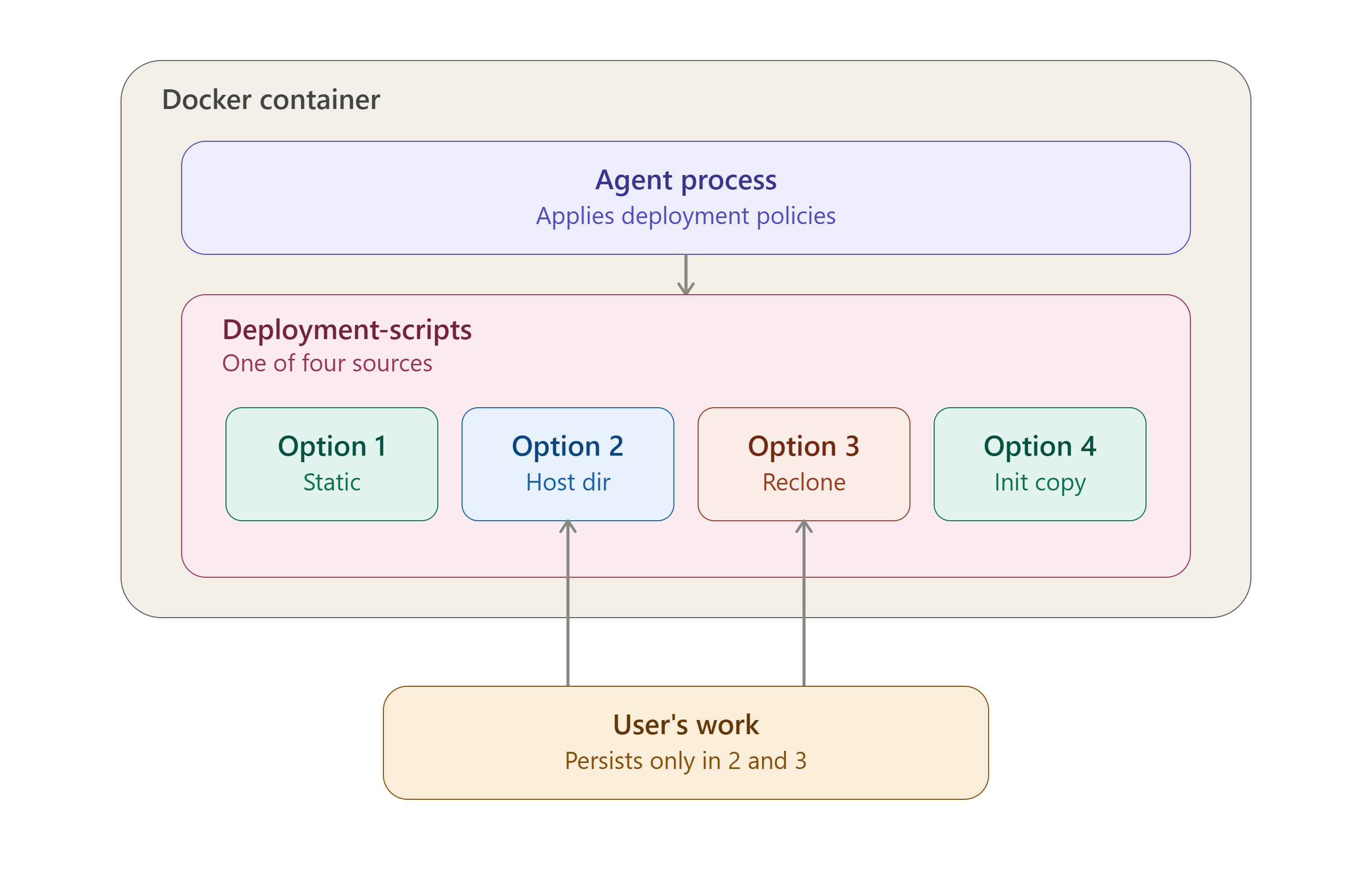

Resolution happens in two stages — build time (compose file generation, driven by make) and, for one of the four options below, runtime (inside the running agent container).

Stage A — Build script (compose file generation)

The build script picks one of four modes, in order:

#	Condition	Behavior
1	`DEPLOYMENTS_REPO`/`DEPLOYMENTS_BRANCH` unset, or explicitly set to the default (`https://github.com/AnyLog-co/deployment-scripts` @ `main`)	Built-in default. Enables the `${CONTAINER_NAME}-local-scripts` named volume. On first creation, Docker seeds it from the scripts baked into the image; after that it’s just a persistent volume.
2	`DEPLOYMENTS_REPO` is set and is an existing local directory on the host	Host bind mount. Compose is rewritten to mount that directory directly at `/app/deployment-scripts`, and the named volume + init-service references are stripped out entirely. Fully static — no cloning, no copying.
3	`DEPLOYMENTS_REPO` is an `http://` or `https://` URL	Reclone at startup. No volume is mounted at all at build time; the agent clones the repo itself when it starts (see Stage B below).
4	`DEPLOYMENTS_REPO` is set but matches none of the above (e.g. a docker image reference)	Secondary deployment-scripts container. A one-shot helper service is injected into the compose file: `image: ${DEPLOYMENTS_REPO}:${DEPLOYMENTS_BRANCH}`, which copies `/app/deployment-scripts` out of that image into the shared `${CONTAINER_NAME}-local-scripts` named volume, then exits. The main service waits on it (`condition: service_completed_successfully`) before starting.

So if you’ve simply created your own repo with the same structure, option 3 (or option 2, if it’s a local directory) is usually the one you want — point DEPLOYMENTS_REPO/DEPLOYMENTS_BRANCH at it and the rest of the machinery (volumes, cloning) is handled for you.

The same build script also has an unrelated block detecting DOCKER_SOCKET and setting DOCKER_GID (for Docker-in-Docker support). That’s a separate concern from deployment-scripts selection.

Important caveat — this entire table only applies when deploying via make. If a user runs docker run directly instead (skipping make, using just the 3 core env vars), none of this build-time logic ever executes. It becomes the user’s responsibility to configure everything themselves:

volumes (highly recommended)
branch selection for deployment-scripts, if changing from default at all
anything else this script would otherwise have handled

Why “a pre-existing volume takes precedence” (the original point 0): Options 1 and 4 both mount the same named volume, ${CONTAINER_NAME}-local-scripts. Docker does not recreate or repopulate an existing named volume just because make reruns — it’s reused as-is. So if that volume already exists from a prior run, it keeps whatever content it has regardless of what DEPLOYMENTS_REPO/DEPLOYMENTS_BRANCH currently say. This applies specifically to Options 1 & 4 (the two modes sharing that volume), not to Options 2 or 3.

Stage B — Runtime (inside the agent container, on startup — Option 3 only)

This clone logic only runs when Stage A resolved to Option 3 (URL, reclone-at-startup). Options 1, 2, and 4 are all static by the time the container starts — no git operations happen for them inside the agent.

if [[ CURRENT_REMOTE == DEPLOYMENTS_REPO ]] && [[ CURRENT_BRANCH == DEPLOYMENTS_BRANCH ]]; then
  # already matches — skip reclone
elif git ls-remote --exit-code --heads "${DEPLOYMENTS_REPO}" "${DEPLOYMENTS_BRANCH}"; then
  # branch exists on remote — wipe LOCAL_SCRIPTS and reclone fresh
else
  # branch/repo not reachable — error, leave existing LOCAL_SCRIPTS untouched
fi

if [[ ! -d ${LOCAL_SCRIPTS} ]]; then
  # still missing — hard fail, agent won't start
fi

If the currently-recorded remote and branch already match DEPLOYMENTS_REPO/DEPLOYMENTS_BRANCH → skip re-cloning, reuse what’s on disk. ⚠️ This check only compares repo + branch name, not commit hash. See the Patches section below — this is the mechanism that determines whether a customer picks up a fix automatically.
Else, if that branch actually exists on the remote → delete the existing LOCAL_SCRIPTS directory and clone fresh.
Else (repo/branch unreachable) → log an error and leave whatever’s currently in LOCAL_SCRIPTS alone.
If LOCAL_SCRIPTS still doesn’t exist after all that → hard fail (exit 1). The agent will not start without deployment-scripts present.

(The “download the repo as a docker container, DEPLOYMENTS_BRANCH as the tag” behavior from the original description is real — it’s Option 4 above, implemented at build time as a helper compose service rather than inside this runtime script.)

Overriding the Entry Point

Pointing DEPLOYMENTS_REPO/DEPLOYMENTS_BRANCH at your own repo (Stage A above) determines which copy of deployment-scripts loads — but the container’s ENTRYPOINT (/app/deploy_anylog.sh) separately hardcodes the path it runs once that repo is in place:

${ANYLOG_PATH}/${APP_NAME} process $ANYLOG_PATH/deployment-scripts/node-deployment/main.al

This path is fixed in the entrypoint script itself — it doesn’t follow $LOCAL_SCRIPTS/$ANYLOG_PATH the way main.al’s internal references do. So if your own repo’s entry script isn’t named main.al, you have two options:

Simplest — no override needed: name (or copy) your custom entry script to node-deployment/main.al within your repo. The entrypoint picks it up with zero further changes, regardless of which Stage A option loaded your repo.

If you need a genuinely different filename, override the container’s entrypoint so it calls your script’s actual path instead of the hardcoded one. This bypasses deploy_anylog.sh’s other setup steps (OpenBao secret fetch, version/arch detection, deployment-scripts resolution, the Kubernetes /etc/hosts patch, etc.) — only do this if you’ve already handled those yourself, or if you maintain your own modified copy of deploy_anylog.sh that still does them before calling your script.

Docker Compose:

services:
  anylog-node:
    image: your-anylog-image
    environment:
      - ANYLOG_PATH=/app
      - APP_NAME=anylog_v1.0.0_x86_64   # or however your image derives this
    entrypoint: ["/bin/bash", "-c"]
    command:
      - >
        ${ANYLOG_PATH}/${APP_NAME} process ${ANYLOG_PATH}/deployment-scripts/node-deployment/my_custom_main.al

Docker Run:

docker run \
  --entrypoint /bin/bash \
  your-anylog-image \
  -c '${ANYLOG_PATH}/${APP_NAME} process ${ANYLOG_PATH}/deployment-scripts/node-deployment/my_custom_main.al'

Both forms replace deploy_anylog.sh entirely for that container, so double-check you don’t need anything it would otherwise have done for you before reaching this line.

Patches & Version Updates

Standard process for any reported issue:

Understand the issue.
Check whether it still exists in the latest code.
Fix it.
Ask the customer to update to the newer build.

What “update to the newer build” actually does depends on where the bug lives, because a docker container bundles two different things — the AnyLog/EdgeLake agent binary and the deployment-scripts — and they update through different mechanisms.

A. Bug is in the agent itself

Customer pulls the new image and restarts. The agent code updates immediately, since the image itself is what’s being replaced. Deployment-scripts are untouched by this step — they live in a separate clone/volume/mount, not something baked fresh into every container restart.

B. Bug is in the deployment-scripts

This depends on which of the four build-time options (see Section 2) the customer is running:

Option 1 — default, in-image main scripts: a new image pull brings fixed scripts along only if the ${CONTAINER_NAME}-local-scripts volume doesn’t already exist. If it does (i.e. this isn’t the customer’s first run), the volume is reused as-is and the fix never lands — the customer needs to remove that volume (and ideally the associated configuration policy) so it gets reseeded from the new image.
Option 2 — local directory (bind mount): no clone/copy step exists at all here. The customer has to update that host directory themselves; pulling a new agent image has zero effect on it.
Option 3 — URL, reclone at startup: ⚠️ if the fix is pushed to the same branch the customer is already tracking, a restart will NOT pick it up. The runtime match check only compares repo + branch strings — it has no concept of “is there a newer commit on this branch.” Since repo and branch are unchanged, the agent treats its existing clone as current and skips re-cloning.
- Workarounds until/unless this is fixed: point at a new branch or tag for the patched scripts, manually delete the LOCAL_SCRIPTS directory/volume so nothing matches and a reclone is forced, or docker exec in and git pull manually.
Option 4 — secondary deployment-scripts container: the helper service runs once and copies into the shared named volume, then exits — it doesn’t run again on a plain restart. Same volume-reuse caveat as Option 1: if ${CONTAINER_NAME}-local-scripts already exists, a new image (even with a bumped tag) won’t get re-copied in unless the volume is cleared first (or the compose file is regenerated with a config that forces recreation).

Practical takeaway for triage: when a customer reports a deployment-scripts bug, first ask which of the four options they’re in — that determines whether “just pull the new image” is actually sufficient, or whether they also need to clear the local-scripts volume, bump a branch/tag, or manually sync a local directory. And if they’re deploying via bare docker run instead of make, none of this is automatic in the first place — walk through their setup manually.
